Stainless Steel Hoses with Braid



Flexible Corrugated Braided Stainless Steel Hoses

Nominal Bore
Working pressure
Test Pressure
Min.Bend Radius
Inches
mms
PSI
Kgs./Cm2
PSI
Kgs./Cm2
Inches
mms
1/4"
8.0
1136
80
1704
120
1.8
45
3/8"
10.0
1136
80
1704
120
2.0
50
1/2"
13.0
1136
80
1704
120
2.6
65
3/4"
19
950
67
1425
100
8
203
1"
25
800
56
1200
85
9
229
1 1/4"
32
650
46
975
69
10.5
267
1 1/2"
38
500
35
750
53
11.5
292
2"
51
475
33
712
50
12.5
318
2 1/2"
62.5
390
27
585
40.5
14
357
3"
75.5
350
24
525
36.0
20
508
4"
103.0
215
15
320
22.5
24
610
5"
126.0
200
14
300
21.0
30
750
6"
152.0
130
9
195
13.5
36
900
8"
202.0
90
6
135
9.0
42
1050


Hoses with lesser bend Radius than shown in above table can be supplied upon specific request. The information is subject to change.
Braided - Type Pump Connetors Specification

Item
Hose I.D
Inches
Overall Length
Inches
Working Pressure
Kg/Cm2
Test Pressure
kg/Cm2
Burst Pressure
Kg/Cm2
Threaded Ends
PT 1/2"
1/2"
6.5
91
137
364
PT 3/4"
3/4"
7
75
113
300
PT 1"
1"
8
48
72
192
PT 11/4"
11/4"
8.5
38
57
152
PT 11/2"
11/2"
9
31
47
124
PT 2"
2"
10.5
31
47
124
PT 21/2"
21/2"
12
27
41
108
PT 3"
3"
14
21
32
84
PT 4"
4"
16
15
22.5
60
Flanged Ends
PF 2"
2"
9
31
47
124
PF 21/2"
21/2"
9
27
41
108
PF 3"
3"
9
21
32
84
PF 4"
4"
9
15
22.5
60

Oxygen lance hoses and Jacketed hoses can be supplied as per customer's requirement.

All threaded assemblies have male NPT ends, schedule 40 carbon steel, with stainless steel hose and stainless single-braid covering.
All flanged assemblies have 150 lb carbon steel flanges, with stainless steel hose and stainless single-braid covering.

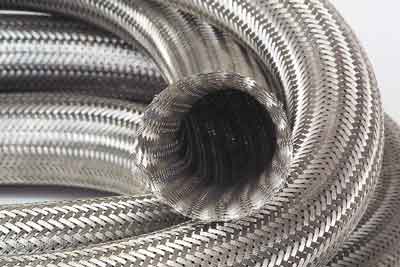

Stainless Steel Braid

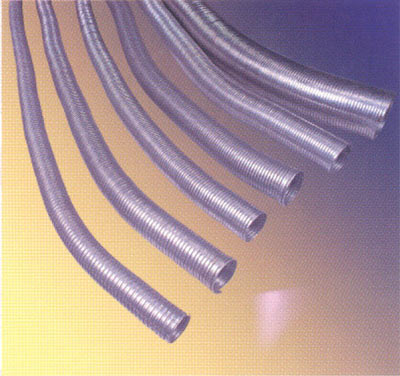

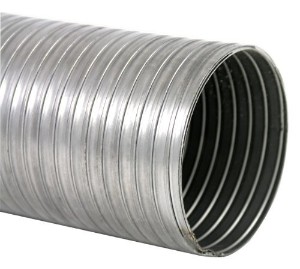

Stainless Steel Interlock Hoses

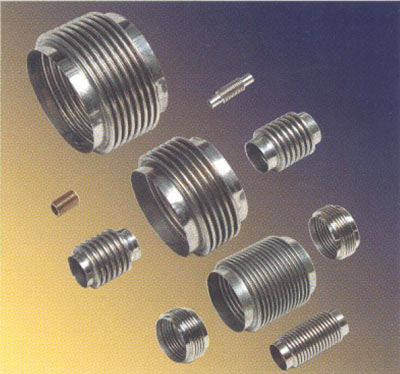

Stainless Steel Expansion Bellows
